| 重型插拔式插銷 |
| MIL-P-45952/1 |
 |
|
| |
重型制動銷規格是一種高質量的帶肩插拔銷, 適用于對軸向鎖緊力要求不高的場合。 |
- 重型彈簧和2個受彈簧控制的不銹鋼球提供穩定的軸向鎖緊力
- 含有孔及開口環，便于與系索連接
- 主體材料可選：
17-4 PH熱處理不銹鋼
另有303系列不銹鋼可選
|
|

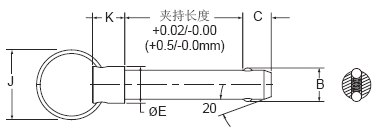

| 重型插拔式規格 - 英制 |
插銷
直徑 |
直徑
+0.000/
-0.003
A |
最小
B |
+0.00/
-0.06
C |
直徑
+/-0.015
E |
直徑
J |
K |
雙向抗剪力
-(lbs) |
拔出力
(lbs) |
推薦配合孔直徑 |
不銹鋼
17-4 PH |
最大 |
最小 |
3/16 (#10) |
.1885 |
.200 |
.250 |
.375 |
1.187 |
.50 |
5,262 |
2 to 7 |
0.1940 |
0.1900 |
1/4 |
.2480 |
.280 |
.344 |
.375 |
1.187 |
.50 |
9,537 |
2 to 7 |
0.2540 |
0.2500 |
5/16 |
.3105 |
.360 |
.359 |
.438 |
1.187 |
.50 |
15,075 |
2 to 7 |
0.3165 |
0.3125 |
3/8 |
.3730 |
.430 |
.390 |
.500 |
1.187 |
.50 |
22,050 |
6 to 14 |
0.3790 |
0.3750 |
7/16 |
.4355 |
.495 |
.469 |
.625 |
1.187 |
.55 |
30,438 |
6 to 14 |
0.4425 |
0.4375 |
1/2 |
.4980 |
.570 |
.516 |
.625 |
1.187 |
.55 |
39,263 |
10 to 22 |
0.5050 |
0.5000 |
9/16 |
.5605 |
.645 |
.593 |
.625 |
1.687 |
.55 |
49,731 |
15 to 30 |
0.5675 |
0.5625 |
5/8 |
.6230 |
.720 |
.672 |
.750 |
1.687 |
.55 |
61,736 |
15 to 30 |
0.6300 |
0.6250 |
3/4 |
.7480 |
.860 |
.750 |
.875 |
1.687 |
.55 |
88,442 |
15 to 30 |
0.7570 |
0.7500 |
7/8 |
.8730 |
1.030 |
.859 |
1.000 |
2.187 |
.55 |
121,500 |
20 to 35 |
0.8820 |
0.8750 |
1 |
.9980 |
1.160 |
.984 |
1.125 |
2.187 |
.55 |
158,998 |
20 to 40 |
1.0100 |
1.0000 |
英制單位: inch
重型制動銷規格 - 公制 |
插銷
直徑 |
直徑
+0.000/
-0.080
A |
最小
B |
+0.0/
-1.5
C |
直徑
+/–0.4
E |
直徑
J |
K |
雙向抗剪力
-(kN) |
拔出力
(N) |
推薦配合孔直徑 |
不銹鋼
17-4 PH |
最大 |
最小 |
5 |
4.95 |
5.23 |
6.35 |
9.53 |
30.15 |
12.7 |
25 |
9 to 31 |
5.1 |
5 |
6 |
5.95 |
6.88 |
8.74 |
9.53 |
30.15 |
12.7 |
36 |
9 to 31 |
6.1 |
6 |
8 |
7.95 |
9.35 |
9.12 |
11.13 |
30.15 |
12.7 |
69 |
9 to 31 |
8.1 |
8 |
10 |
9.95 |
11.58 |
9.91 |
12.70 |
30.15 |
12.7 |
107 |
26 to 62 |
10.1 |
10 |
12 |
11.95 |
13.84 |
13.11 |
15.88 |
30.15 |
14.2 |
154 |
44 to 97 |
12.1 |
12 |
16 |
15.95 |
18.54 |
17.07 |
19.05 |
42.85 |
14.2 |
275 |
66 to 133 |
16.1 |
16 |
20 |
19.95 |
22.91 |
19.05 |
22.23 |
42.85 |
14.2 |
433 |
89 to 155 |
20.15 |
20 |
25 |
24.95 |
29.18 |
24.99 |
28.58 |
55.55 |
14.2 |
682 |
89 to 178 |
25.15 |
25 |
公制單位:mm |
|
