起重吊環 |
|
美國制造,享有國際信譽的杰根斯起重吊環,為模具起吊提供可靠保證。杰根斯起重吊環起重載荷最大可達22.5噸，且具有5倍的安全系數，最大螺紋直徑達M64,所有材料都是高強度合金鋼，萬向吊環具直拉型和側拉型.... |
|
|
|
|
|
|
|
|
類型 |
公/英制 |
螺紋尺寸 |
載荷 |
|
|
|
|
| |
|
| |
|
| |
| |
- 替代固定式吊環螺栓
- 提拉機加工方箱和大型夾具
- OEM應用
- 提拉模具
| |
件 號 |
載荷
(千克) |
螺紋尺寸
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
六角螺絲
尺寸
M |
扭矩
牛.米 |
重量
(kg) |

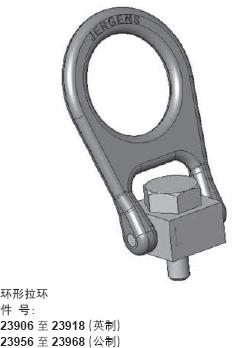

23956 |
400 |
M8X1.25 |
1.2 |
12 |
12.7 |
25.4 |
25.4 |
8.7 |
6.3 |
38.1 |
57.2 |
62.7 |
91.3 |
19 |
10 |
0.27 |
23958 |
450 |
M10X1.5 |
1.2 |
15 |
12.7 |
25.4 |
25.4 |
8.7 |
6.3 |
38.1 |
57.2 |
62.7 |
91.3 |
19 |
17 |
0.27 |
23962 |
1050 |
M12X1.75 |
1.6 |
18 |
25.4 |
50.8 |
38.1 |
14.3 |
19 |
76.2 |
112.7 |
101.6 |
161.9 |
32 |
37 |
1.64 |
23965 |
1900 |
M16X2.0 |
1.6 |
24 |
25.4 |
50.8 |
38.1 |
14.3 |
19 |
76.2 |
112.7 |
101.6 |
161.9 |
32 |
80 |
1.64 |
23968 |
2150 |
M20X2.5 |
1.6 |
30 |
25.4 |
50.8 |
38.1 |
14.3 |
19 |
76.2 |
112.7 |
101.6 |
161.9 |
32 |
134 |
1.70 |
*23974 |
4200 |
M24X3.0 |
1.6 |
35.7 |
47.6 |
96.0 |
76.2 |
27.0 |
31.7 |
91.3 |
147.6 |
207.2 |
245.3 |
63.5 |
305 |
7.10 |
*23975 |
4200 |
M24X3.0 |
1.6 |
47.6 |
47.6 |
96.0 |
76.2 |
27.0 |
31.7 |
91.3 |
147.6 |
207.2 |
245.3 |
63.5 |
305 |
7.20 |
*23978 |
7000 |
M30X3.5 |
1.6 |
44.8 |
47.6 |
96.0 |
76.2 |
27.0 |
31.7 |
91.3 |
147.6 |
207.2 |
245.3 |
63.5 |
590 |
7.30 |
*23979 |
7000 |
M30X3.5 |
1.6 |
60.0 |
47.6 |
96.0 |
76.2 |
27.0 |
31.7 |
91.3 |
147.6 |
207.2 |
245.3 |
63.5 |
590 |
7.40 |
*23982 |
11000 |
M36X4.0 |
2.8 |
53.6 |
63.5 |
123.8 |
114.3 |
36.5 |
44.5 |
114.3 |
196.1 |
290.5 |
351.6 |
82.55 |
960 |
19.1 |
*23983 |
11000 |
M36X4.0 |
2.8 |
71.4 |
63.5 |
123.8 |
114.3 |
36.5 |
44.5 |
114.3 |
196.1 |
290.5 |
351.6 |
82.55 |
960 |
19.3 |
*23984 |
12500 |
M42X4.5 |
2.8 |
62.7 |
63.5 |
123.8 |
114.3 |
36.5 |
44.5 |
114.3 |
196.1 |
290.5 |
351.6 |
82.55 |
980 |
19.4 |
*23985 |
12500 |
M42X4.5 |
2.8 |
83.3 |
63.5 |
123.8 |
114.3 |
36.5 |
44.5 |
114.3 |
196.1 |
290.5 |
351.6 |
82.55 |
980 |
19.6 |
*23986 |
13500 |
M48X5.0 |
2.8 |
71.4 |
63.5 |
123.8 |
114.3 |
36.5 |
44.5 |
114.3 |
196.1 |
290.5 |
351.6 |
82.55 |
980 |
19.7 |
*23987 |
13500 |
M48X5.0 |
2.8 |
95.3 |
63.5 |
123.8 |
114.3 |
36.5 |
44.5 |
114.3 |
196.1 |
290.5 |
351.6 |
82.55 |
980 |
20.0 |

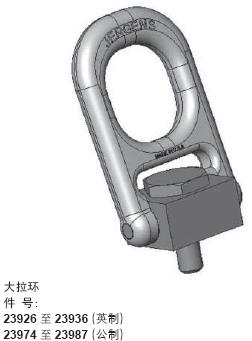

*指大拉環 |
| |
|
| |
|
