| 油缸壓緊臂 |
|
|
標準單臂 |
|
 |
件號 |
A |
B |
C |
D(英制) |
E |
F |
G |
H |
I |
60930 |
38.1 |
12.7 |
25.4 |
5/16-24 |
5/16-18 |
12.3 |
27.8 |
15.888/15.939 |
21.4 |
60931 |
50.8 |
19.1 |
34.9 |
3/8-24 |
3/8-16 |
17.1 |
39.7 |
22.238/22.289 |
29.4 |
60932 |
63.5 |
31.8 |
47.6 |
5/8-18 |
5/8-11 |
22.2 |
47.6 |
31.763/31.814 |
42.1 |
|
|
·材料:
4140, 熱處理至: Rc 32-36 |
|
長單臂 |
|
 |
件號 |
A |
B |
C |
D(英制) |
E |
F |
G |
H |
I |
60933 |
136.5 |
12.7 |
25.4 |
5/16-24 |
12.3 |
16.7 |
12.7 |
15.888/15.939 |
21.4 |
60934 |
161.9 |
19.1 |
34.9 |
3/8-24 |
17.1 |
20.6 |
15.9 |
22.238/22.289 |
29.4 |
60935 |
165.1 |
31.8 |
47.6 |
5/8-18 |
22.2 |
31.8 |
19.1 |
31.763/31.814 |
42.1 |
|
·材料:
4140, 熱處理至: Rc 32-36 |
|

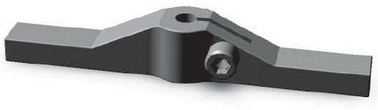

長雙臂 |
|
 |
件號 |
A |
B |
C |
D(英制) |
E |
F |
G |
H |
I |
60936 |
222.3 |
12.7 |
25.4 |
5/16-24 |
12.3 |
16.7 |
12.7 |
15.888/15.939 |
22.2 |
60937 |
273.1 |
19.1 |
34.9 |
3/8-24 |
17.9 |
20.6 |
15.9 |
22.238/22.289 |
30.6 |
60938 |
279.4 |
31.8 |
47.6 |
5/8-18 |
22.2 |
31.8 |
19.1 |
31.763/31.814 |
43.3 |
|
·材料:
4140, 熱處理至: Rc 32-36 |
|
